Advanced carbon solutions powered by proprietary technologies and continuous innovation
Haycarb stands at the forefront of global innovation as a leader in manufacturing activated carbon primarily from coconut shell, along with wood and other precursors. With a strong R&D and engineering foundation, we consistently develop specialized solutions that address the critical market needs. Our innovations deliver superior solutions that enhance environmental sustainability and industry performance worldwide.
New Product Development

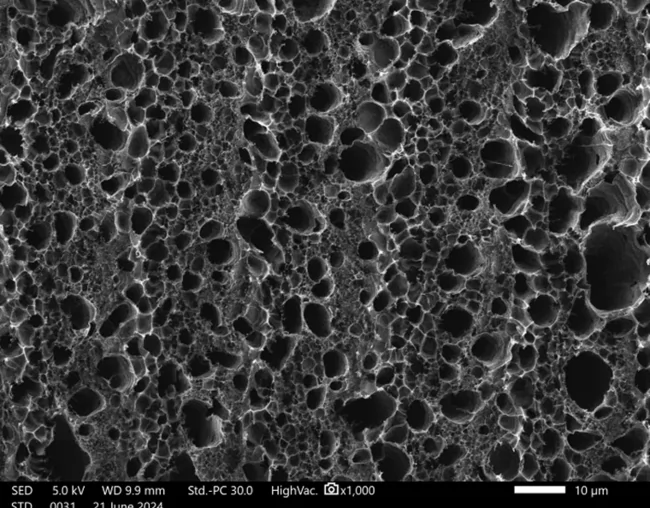

Haycarb leads the energy storage industry with its innovative energy carbon materials, focusing on applications in supercapacitors, Li-ion batteries, and Sodium-ion batteries. Central to our advancements, our high surface area coconut-based activated carbon is crucial for developing electrode materials in supercapacitors and silicon-carbon composite anodes in Li-ion batteries while low surface area carbon is well suited for anodes in Sodium-ion batteries. Our specialized processes include,
- Very low & very high surface area (from < 5m²/g for hard carbons used in Na-ion batteries to > 1,800 m²/g for Supercapacitors and Li-ion batteries)
- High purity with very low ash (<500 ppm) and low metal contaminants, ensuring compatibility with energy storage devices.
- Optimized surface functional groups specially on O-N-H groups
- Jet milled micron sizing of d50 ~ 5-7 microns along with the improved morphology and tight size distributions by eliminating sub-micron particles

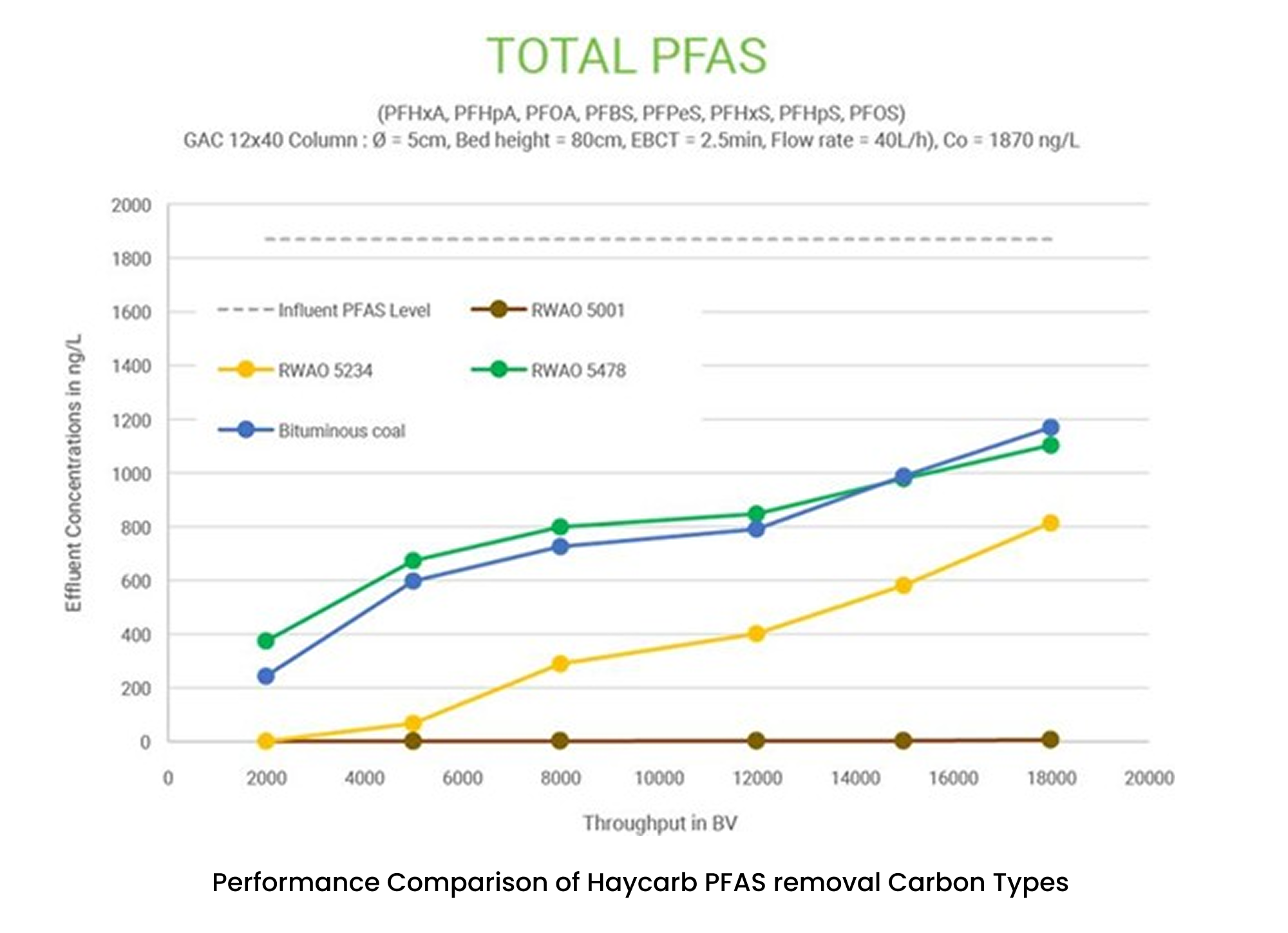

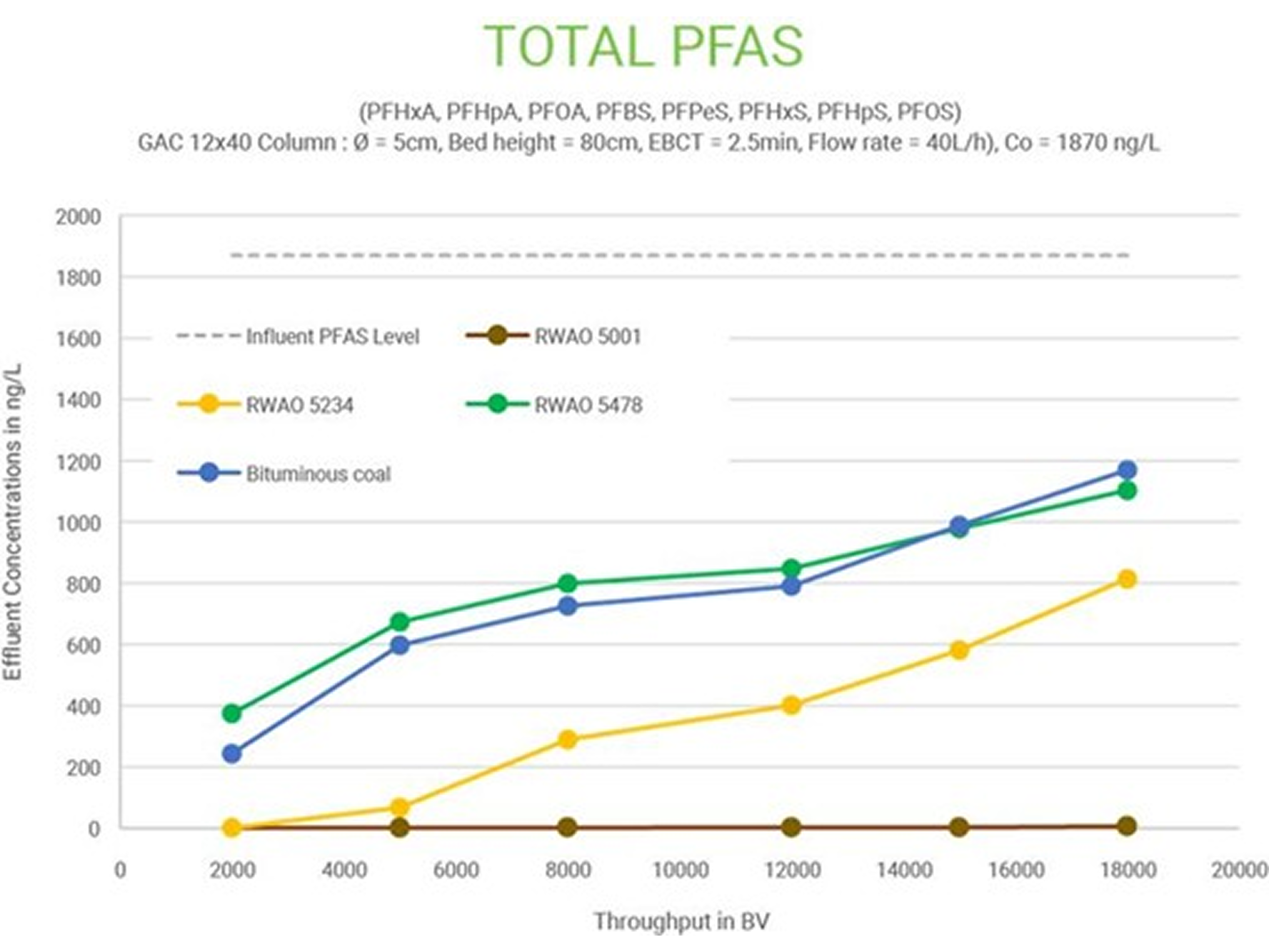

Recognizing the growing concern over PFAS in drinking water, industrial wastewater, groundwater, and surface water, Haycarb offers advanced activated carbon media for removing PFAS. Haycarb PFAS removal carbon “5000 series” outperforms traditional bituminous coal-based carbons in removing various PFAS compounds, including PFOA, PFOS, PFBS, PFPeS, PFHxS, PFHpS, PFHxA, and PFHpA. Our products are engineered to target low-level contaminants at the ppt/ppb levels.
- Very low & very high surface area (from < 5m 2 /g for hard carbons used in Na-ion batteries to 1,800 m 2 /g for Supercapacitors and Li-ion batteries)
- High purity with very low ash (<500 ppm) and low metal contaminants, ensuring compatibility with energy storage devices.
- Optimized surface functional groups specially on O-N-H groups
- Jet milled micron sizing of d50 ~ 5-7 microns along with the improved morphology and tight size distributions by eliminating sub-micron particles

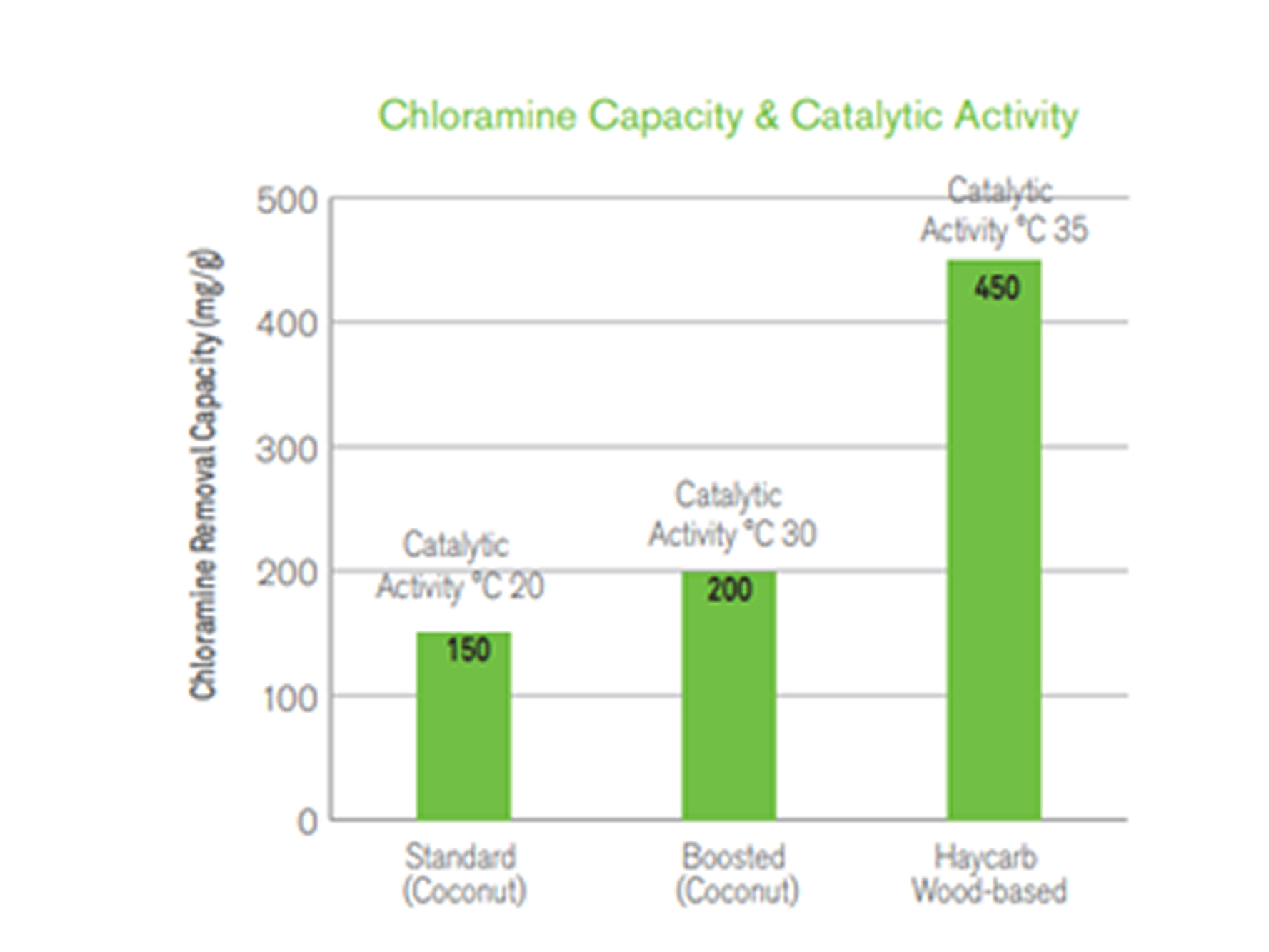

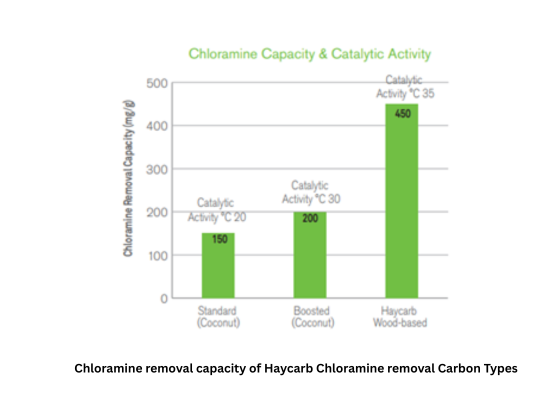

Haycarb RWAC wood based activated carbon, also known as catalytic carbon, are produced from renewable sources and manufactured using proprietary surface modification technology. This in-house innovative process optimizes the pore structure and surface characteristics compared to standard activated carbon, creating catalytic activity. These catalytic carbons have been specially developed to remove chloramine while also effectively eliminating hydrogen sulfide (H2S), heavy metals, disinfection by-products (DBP), and other emerging contaminants in water purification applications.
- Very low & very high surface area (from < 5m 2 /g for hard carbons used in Na-ion batteries to 1,800 m 2 /g for Supercapacitors and Li-ion batteries)
- High purity with very low ash (<500 ppm) and low metal contaminants, ensuring compatibility with energy storage devices.
- Optimized surface functional groups specially on O-N-H groups
- Jet milled micron sizing of d50 ~ 5-7 microns along with the improved morphology and tight size distributions by eliminating sub-micron particles

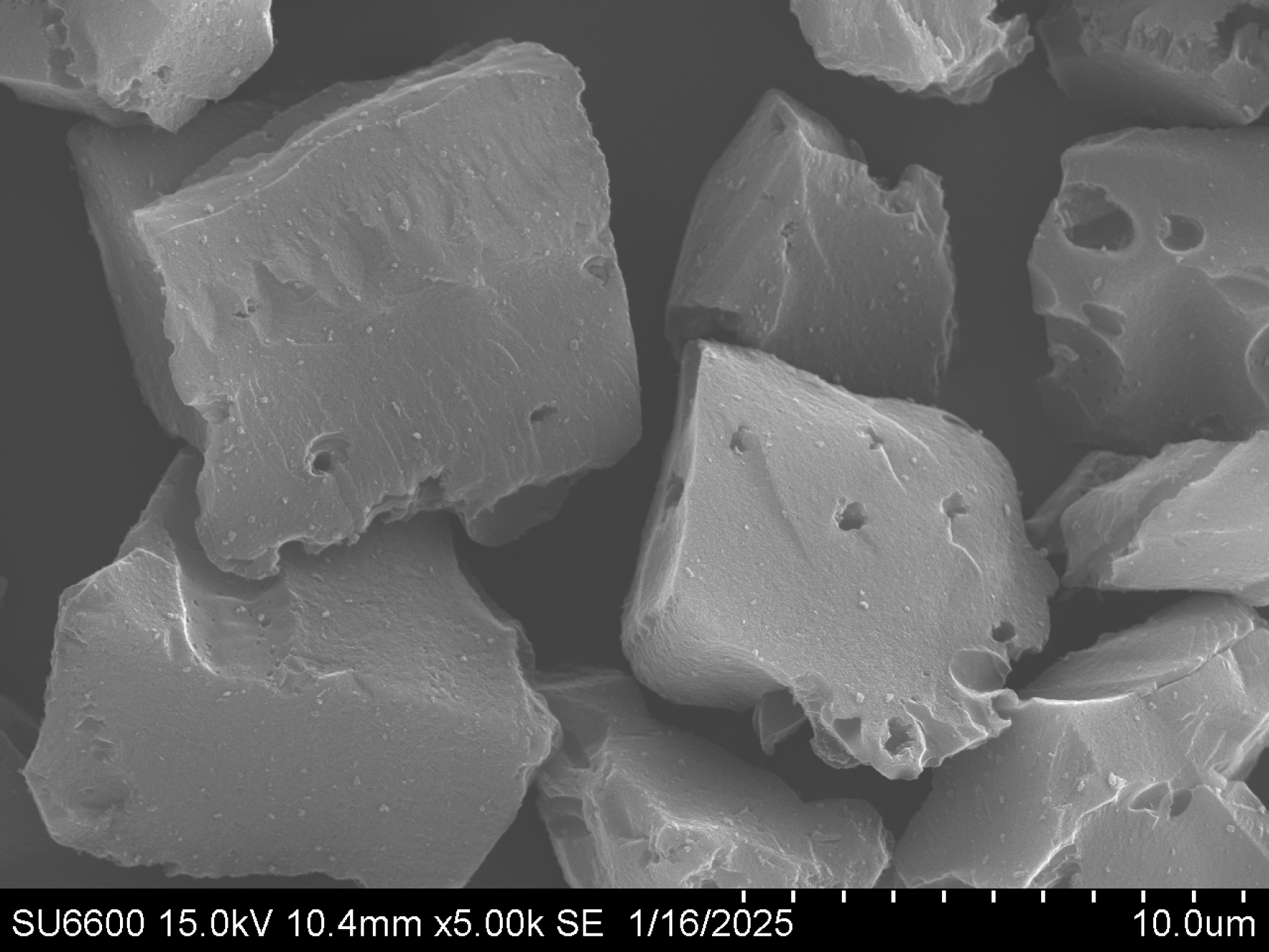

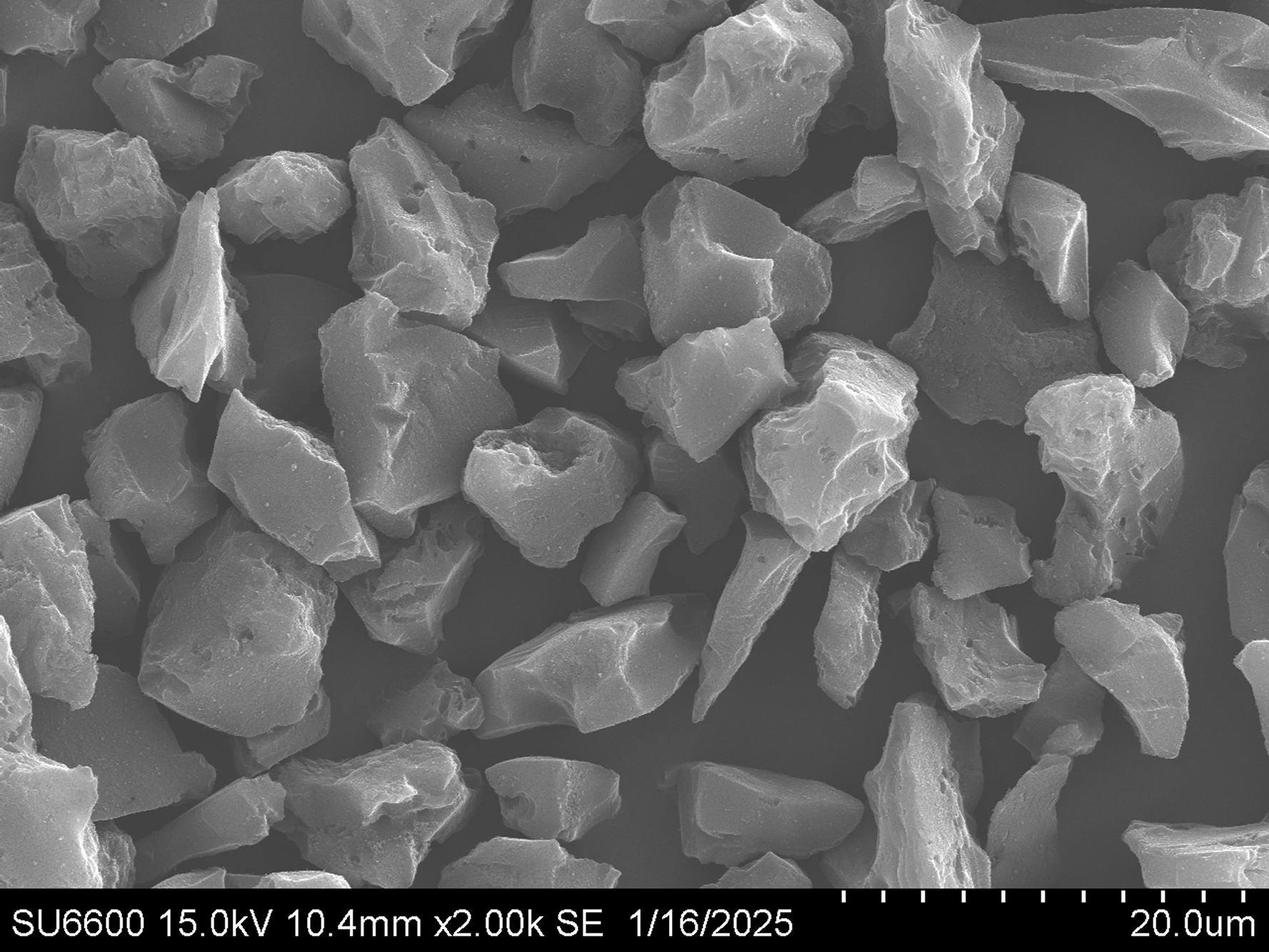

Haycarb provides advanced carbon materials for protective filters and masks that safeguard against chemical agents in various high-risk environments, including military, industrial, and nuclear operations. These masks are designed to offer essential protection, ensuring safety in scenarios where exposure to harmful chemicals is a significant concern. These activated carbons for respirators are well-known for its consistent particle size distribution and adjusted pore structure to optimize adsorption efficiency.
- Very low & very high surface area (from < 5m 2 /g for hard carbons used in Na-ion batteries to 1,800 m 2 /g for Supercapacitors and Li-ion batteries)
- High purity with very low ash (<500 ppm) and low metal contaminants, ensuring compatibility with energy storage devices.
- Optimized surface functional groups specially on O-N-H groups
- Jet milled micron sizing of d50 ~ 5-7 microns along with the improved morphology and tight size distributions by eliminating sub-micron particles
Our product portfolio includes a high-capacity, coconut shell-based pelletized activated carbon, specifically developed for acid gas removal in industrial waste gas treatment, sewage treatment operations, and similar applications. This non-impregnated product is uniquely designed to offer higher adsorption capacity for H2S.
- Very low & very high surface area (from < 5m 2 /g for hard carbons used in Na-ion batteries to 1,800 m 2 /g for Supercapacitors and Li-ion batteries)
- High purity with very low ash (<500 ppm) and low metal contaminants, ensuring compatibility with energy storage devices.
- Optimized surface functional groups specially on O-N-H groups
- Jet milled micron sizing of d50 ~ 5-7 microns along with the improved morphology and tight size distributions by eliminating sub-micron particles
Process Technologies
High surface area activation
Technology
Innovative in-house capabilities to manufacture coconut shell activated carbon products with surface areas of 1600 m²/g, 2000 m²/g, and 2500 m²/g with selection of precise preparation of raw materials and activation technology
High Purity acid washing
Technology
Our in-house technical innovations include advanced washing technologies designed to obtain ultra-pure products required for Energy Storage Applications. This innovative process removes impurities to less than 500 ppm levels.
Surface modification
Technology
Our innovative technologies are designed to modify the surface functional groups and surface chemistry of the carbon as applicable to supercapacitor and Si-C composite carbon. In addition, there are some other types of special surface modifications which can be incorporated to create catalytic activity, hydrophobic and hydrophilic properties to the surface chemistry. This enables selective adsorption of target contaminants.
Impregnation Technology
Impregnated activated carbon undergoes a unique chemical treatment to develop specific properties. This treatment methodology include changing the surface nature with of activated carbon and enhancing the affinity to various contaminants in air and liquids with catalytic activity by using different treatment conditions.

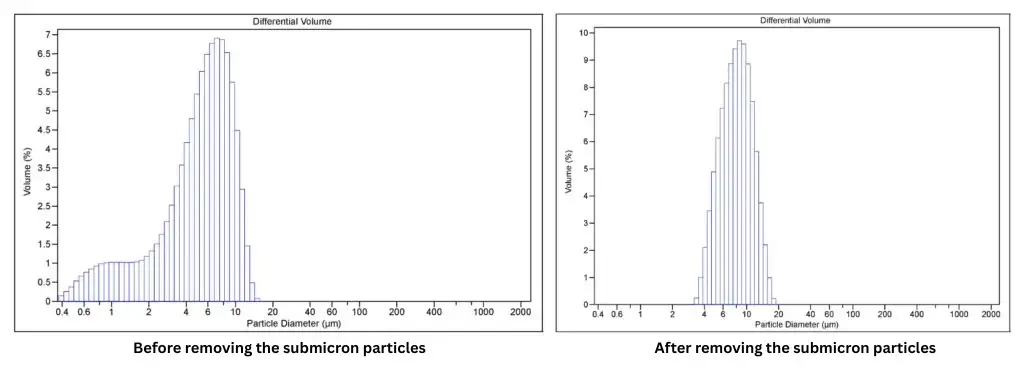

Precision sizing Technology
To ensure precision particle sizing of granular, fines, and powdered activated carbon, we utilize specialized processes that consistently achieve narrow size distributions as required in energy carbon applications. We have developed advanced processes to effectively remove micron or submicron particles.
Regeneration Technology
Haycarb Activated carbon regeneration is a cost-effective and environmentally friendly technology that restores used carbon to 97% of its original adsorption capacity, allowing multiple reuses. This process involves transporting spent carbon to a regeneration facility, where it undergoes thermal regeneration to eliminate contaminants, mimicking the initial manufacturing process. The regenerated carbon, supplemented with some virgin material to offset processes and handling losses, is then returned to the customer. Haycarb supports this with technical advice and onsite system installation, ensuring that regenerated carbon delivers performance on par with new material. This method is especially effective for high-volume, long-term applications like solvent recovery.
Green Charcoaling Technology
Eco-Friendly Charcoaling Pit construction is designed to produce coconut shell charcoal using green technology through the “Haritha Angara” program. We provide technical know-how and financing to our charcoal suppliers to help them transition to environmentally friendly charcoaling methods. In addition to this, our in-house patented technology ‘RECOGEN’ produces coconut shell charcoal in a closed system enabling the combustion of harmful gases released during the production process. The heat generated in this process is used to operate a boiler/steam turbine to generate electricity which is supplied to the National Grid.
